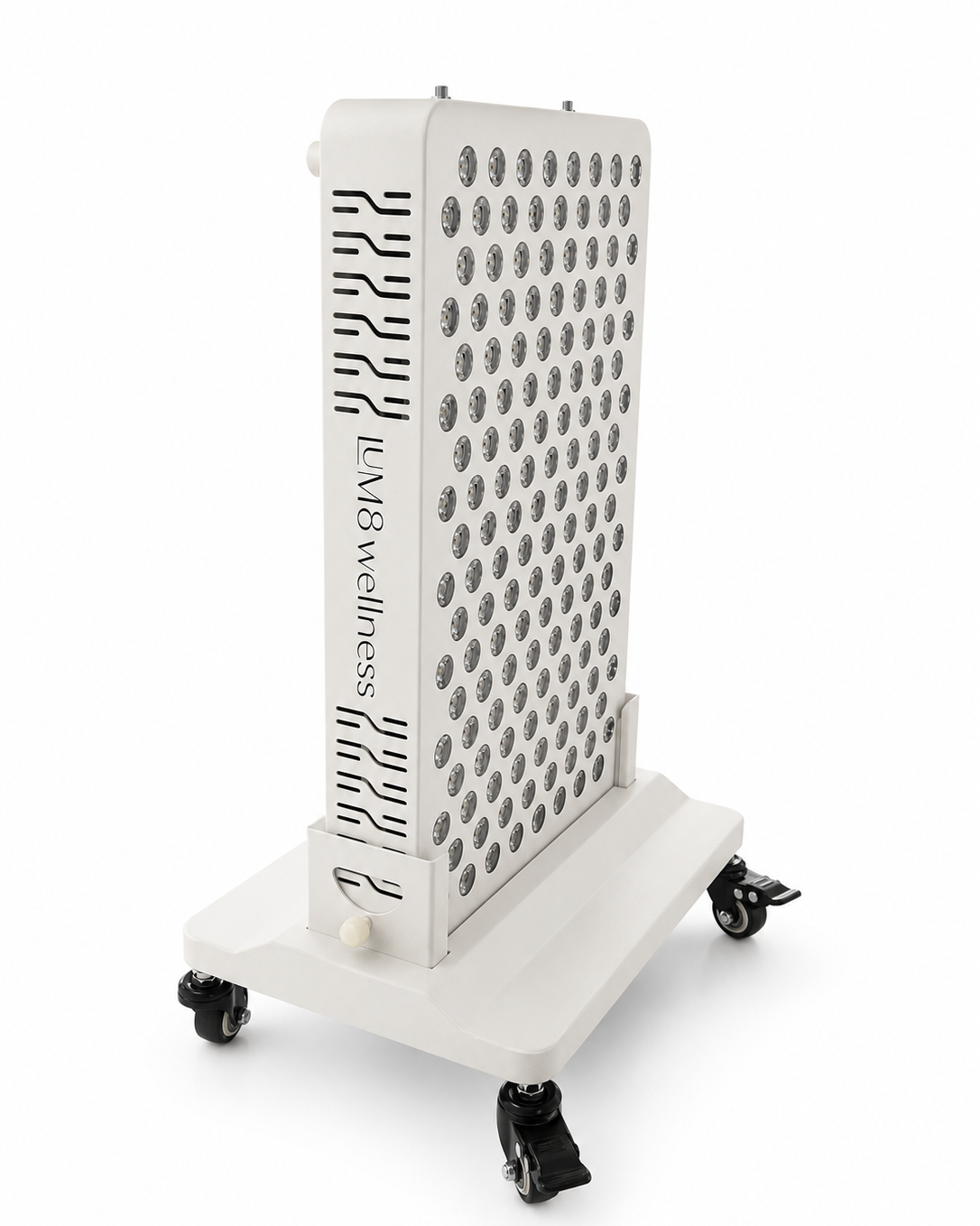

Red Light Therapy Panel 200 Max
8 Wavelengths
1060nm Deep Reach
Ultra Low EMF
Flicker-Free
Your body has been reading light as a signal since it evolved under the sun. The LUM8 200 MAX delivers eight wavelengths of red and near-infrared light, from surface-level red light through to deep near-infrared.
Red and near-infrared light are widely studied for their ability to support skin health, muscle recovery and cellular energy.
Most panels on the market use four or five wavelengths. This one has eight, including the rare 1060nm, a deeply penetrating wavelength rarely offered in a panel this size.
Back in stock, limited units. Our first drop sold out fast. This batch is in Noosa now and ready to ship.
Key Features
- 144 LEDs, 240W, 30° lens on every LED
- Eight wavelengths, red and near infrared, including 1060nm
- Touchscreen with Scene presets, plus remote control
- Brightness and pulse adjustable for each wavelength
- 0.0 µT EMF at 4 inches
- Flicker free
- Wall mount, door hook and pulley included
"We spent months testing panels before building our own. The difference 1060nm makes to deep tissue recovery is significant — it had to be in the range."
Ben Giles, Co-founder, LUM8 Wellness
Specifications
Light Output
- 8 wavelengths: 630 / 650 / 660 / 670 / 810 / 830 / 850 / 1060nm
- Irradiance: 160 mW/cm² typical at 6 inches (15cm), red and NIR combined. 140 mW/cm² guaranteed minimum
- 144 LEDs, each delivering red and near infrared light
- 30° lens angle
Power
- 240W rated power
- 220 to 240V AC, 50 to 60Hz
- EMF: 0.0 µT at 4 inches
- Flicker free
Controls
- Touchscreen and remote control
- Modes: Red, NIR, Red and NIR, plus Scene presets
- Brightness: 0 to 100%, for each wavelength
- Pulse: up to 10,000Hz, for each wavelength
- Timer, alarm clock and Group mode for linking panels
Physical
- Dimensions: 480 × 300 × 65mm
- Weight: 8.5kg
- Surface temperature: 40°C or less
- Best for: half body
Certification & Compatibility
- RCM certified, certificate GMA-525932-EA
- Compatible with the LUM8 Floor Stand
- 3 year warranty
Our Guarantee
We built these products for our own family before we ever sold them to anyone else. That means we stand behind everything we make.
If your order arrives damaged, develops a fault, or simply isn't what you expected — contact us.
We'll make it right.
30-day returns on all orders.
3 year warranty on this panel.
We will respond within one to two business days.
hello@lum8wellness.com
Choose options
How to Use
Distance & Duration
Sit or stand 15 to 30cm from the panel. Start with 5 to 10 minutes and build up to 10 to 20 minutes over a couple of weeks. Three to five sessions a week suits most people, and daily use is fine too.
What to Target
Face and neck for skin. Back, shoulders and legs after training. Use Red for skin, Red and NIR for broader sessions, and Red at a lower brightness in the evening.
FAQ
Red and near infrared light sit at and just beyond the red end of the visible spectrum. Research suggests they’re absorbed by the mitochondria, the energy producing parts of your cells. They’re widely studied for their role in supporting cellular energy, skin health and muscle recovery.
Most people sit 15 to 30cm away. Closer is more intense, and the panel’s irradiance is rated at 15cm. For a gentler whole body session, stand back as far as 60cm. Start at about 30cm and move closer as you get used to it.
Start with 5 to 10 minutes and build up over two weeks. Most sessions sit between 10 and 20 minutes. If you don’t set a timer, the panel runs for 5 minutes and switches off. The manufacturer recommends waiting 6 hours between 30 minute sessions.
Eight. Four red at 630, 650, 660 and 670nm, and four near infrared at 810, 830, 850 and 1060nm. 1060nm is a longer near infrared wavelength that’s rare in red light panels. Use them as Red, NIR, or Red and NIR together. Near infrared is invisible, so in NIR mode the panel looks off but is still working.
Both panels have the same eight wavelengths, the same 160 mW/cm² typical at 15cm and the same controls.
- 200 MAX: 144 LEDs at 240W, 480 × 300mm. Suited to half body and targeted sessions.
- 300 MAX: 288 LEDs at 480W, 920 × 300mm. Built for mostly full body sessions.
Never look directly into the panel. Wear the protective eyewear included with your panel for every session. Near infrared light is invisible, so the panel can be working even when it looks off.
Consistency matters most. Most people use their panel three to five times a week, or daily. Everyone responds differently, so give it a few weeks of regular use and see how you feel.
